Home : Electrical & Lighting : Sockets :

Lamp Sockets QUICK-CONNECT & IN-LINE, Candelabra Base

LAMP SOCKETS - QUICK-CONNECT and IN-LINE with Candelabra Base for Creating Custom Lighting Applications and Solutions.

  • IMPORTANT: Attach QUICK CONNECT Socket To Cord Sets that have FULLY TINNED Ends. Cut Exposed Wire from 3/8" to 1/2" Long Maximum.

  • For Indoor Use only.

Click on images to zoom.

Lamp Sockets with Candelabra Base & Quick-Connect or In-Line

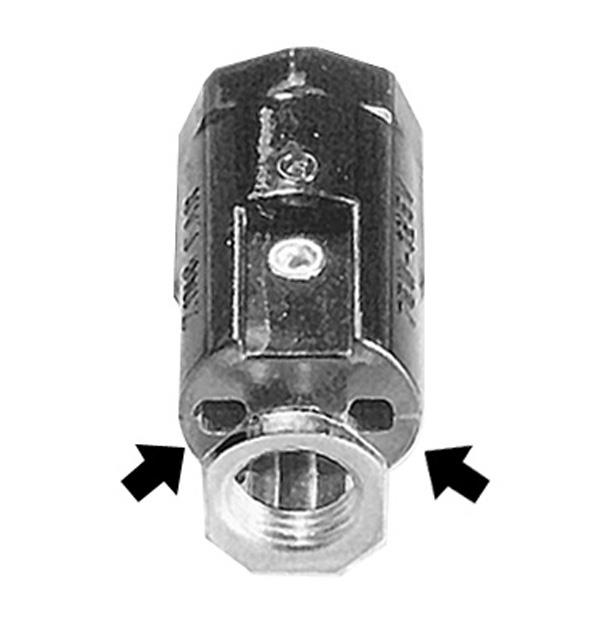

Quick Connect Socket

Use with fully tinned cords with 3/8" to 1/2"L ends. Push tinned ends fully into holes (see arrows). Socket is 1-5/8"H overall x 13/16" dia. Bracket threaded 1/8 IP. UL/CSA listed. Use 40W bulb max.

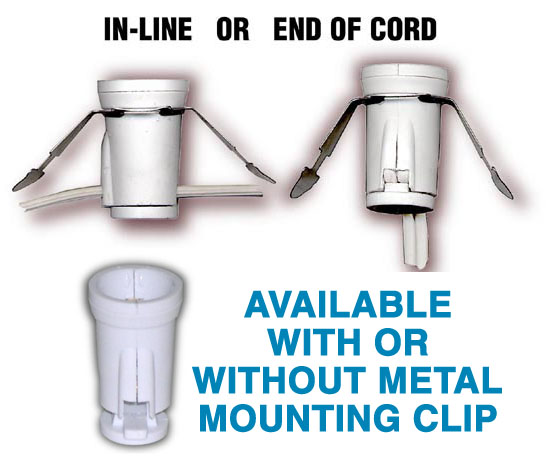

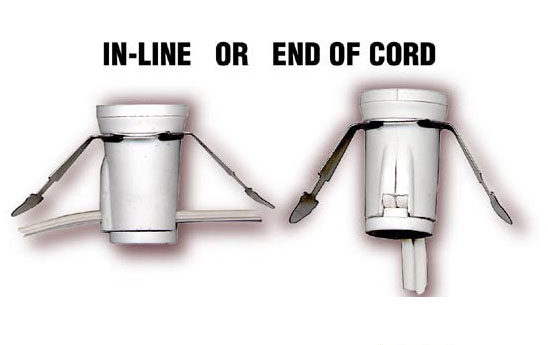

Candelabra Sockets with or without Mounting Clip for IN-LINE or END-of-CORD Installation

Fits SPT-1 wire only. 1-1/8"H overall. Base is 3/4"W. Top is 7/8"W. Metal clip fits 1"dia. hole. 7W max. bulb. U.L./CSA listed.

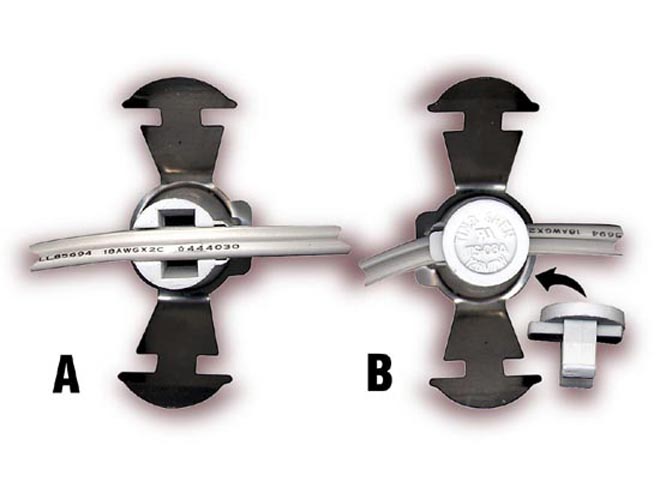

CLIP IN-LINE Socket Installation:

1) Press cord firmly into channel so that 2 metal prongs penetrate insulation.
2) Put cap on with tab facing end of cord.
3) Gently tap it with hammer to lock it in place.

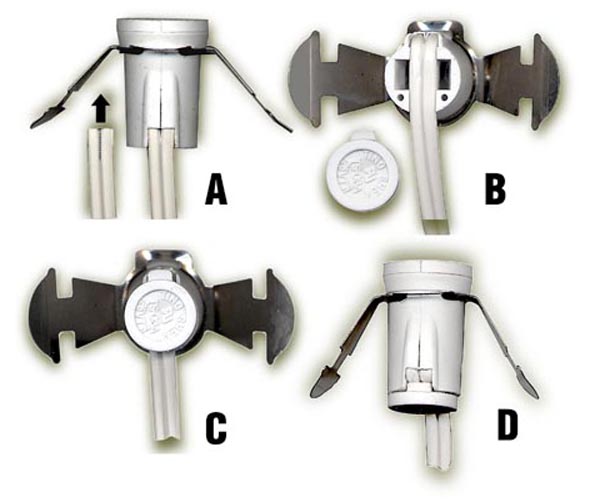

CLIP END-OF-LINE Installation:

1) Cut wire flush w/insulation.
2) Push wire into socket as far as it will go & then press it into groove so prongs pierce insulation.
3) Put cap on. Gently tap w/hammer to lock in place.

Images
Click to zoom.		 Color, Size or Description Unit List
Price

Quantity Price Breaks

 Add to Order
1 5 10 20 50 100 Qty.
Lamp Socket, Quick Connect, Candelabra Base
Stock Number: 140-701-08
Quick Connect Lamp Socket. Use this candelabra style socket only with lamp cords that have FULLY TINNED stripped ends. 		ea. $2.45 $1.85 --- $1.49 --- $1.12 $0.93
Lamp Socket w/Clip, In-Line or End of Cord, Candelabra Base
Stock Number: 140-793-06
Quick Connect Candelabra Lamp Socket. Place anywhere on your SPT-1 lamp cord. Metal mounting clip snaps into 1-1/8" openings. 7W max. For indoor use only. 		ea. $2.60 $1.95 --- $1.60 --- $1.30 $1.15 No Stock
Lamp Socket w/o Clip, In-Line or End of Cord, Candelabra Base
Stock Number: 140-794-05
Quick Connect Candelabra Lamp Socket. Place anywhere on your SPT-1 lamp cord. Press-fits into 3/4" openings. Use 7W max. For indoor use only. 		ea. $2.19 $1.30 --- $1.05 --- $0.78 $0.65

For Large Quantity POWER PRICING Please Contact Us.
Please Note: To avoid risk of fire, burns, electrical shock or other injury, install correctly, do not exceed ratings and do not place where small children can reach them.


Minimum TOTAL Merchandise Order Is $10.

To order an item, add the quantity you wish in the blank space provided. Then click on the Order button to add it to your shopping basket.

  • Lamp Socket, Quick Connect, Candelabra Base $1.49 & up


    Quick Connect Lamp Socket. Use this candelabra style socket only with lamp cords that have FULLY TINNED stripped ends.

    click image to zoom

    • Stock Number: 140-701-08
    • Unit: ea.
    • List Price: $2.45
    • Quantity Price Breaks:
      • 1 5 10 20
      $1.85 --- $1.49 ---

      Add to Order

  • Lamp Socket w/Clip, In-Line or End of Cord, Candelabra Base $1.60 & up


    Quick Connect Candelabra Lamp Socket. Place anywhere on your SPT-1 lamp cord. Metal mounting clip snaps into 1-1/8" openings. 7W max. For indoor use only.

    click image to zoom

    • Stock Number: 140-793-06
    • Unit: ea.
    • List Price: $2.60
    • Quantity Price Breaks:
      • 1 5 10 20
      $1.95 --- $1.60 ---


      No Stock

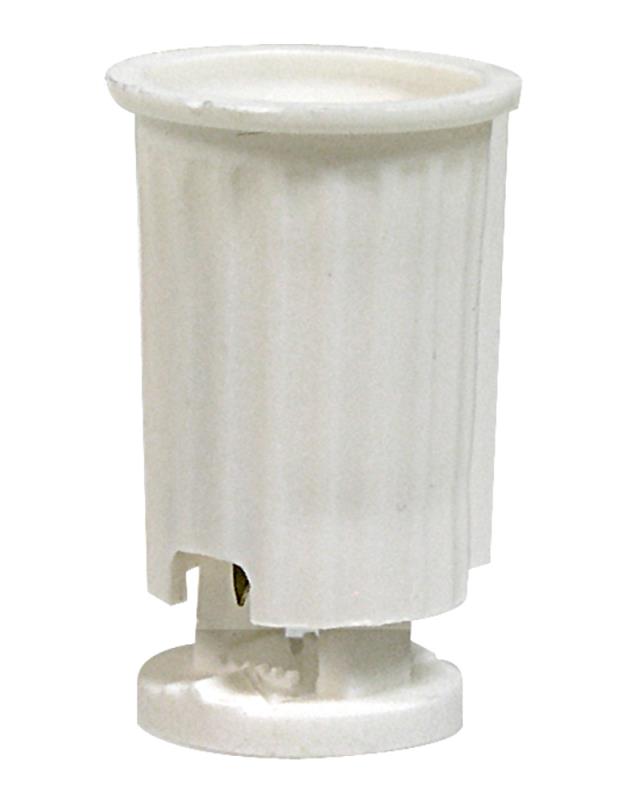

  • Lamp Socket w/o Clip, In-Line or End of Cord, Candelabra Base $1.05 & up


    Quick Connect Candelabra Lamp Socket. Place anywhere on your SPT-1 lamp cord. Press-fits into 3/4" openings. Use 7W max. For indoor use only.

    click image to zoom

    • Stock Number: 140-794-05
    • Unit: ea.
    • List Price: $2.19
    • Quantity Price Breaks:
      • 1 5 10 20
      $1.30 --- $1.05 ---

      Add to Order

Recommended Lamp Cord with FULLY TINNED Ends w/o On-Off Switch: 113-125-04, 113-126-03 and 201-210-09.
Recommended Lamp Cord with FULLY TINNED Ends and On-Off Switch: 113-130-09, 113-131-08, 147-020-09 and 147-021-08.
