Lighting Parts, Lamp Parts, Lamp Making Supplies : LAMP SOCKETS, Light Sockets & Lighting Sockets :
LAMP SOCKETS - BRASS Finish Metal Shell, Medium (Edison) Base

BRASS Finish LAMP SOCKETS with Medium (Edison) Base may be used in New Lamp Making Projects, Repairs and Restorations. Quantity pricing is available for greater savings.

  • For SPT-1 and SPT-2 Wire
  • Brass Finish in Classic Shape.
  • NOTE: Finish may vary from light to dark brass depending on the supplier.
  • Uses Standard Household Light Bulbs with Edison (Medium) Base
  • Base Threaded 1/8 IP
  • For INDOOR Use Only

Click on Images to Zoom

LAMP SOCKETS
Brass Finish
Metal Shells
Medium (Edison) Base
7 Styles

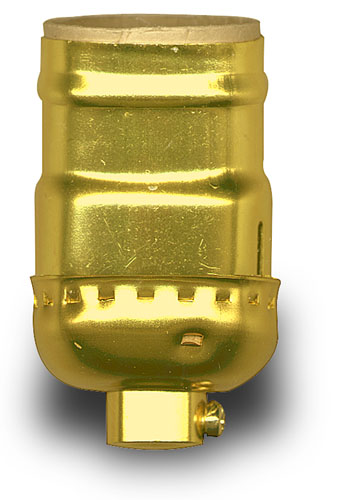

A) KEYLESS LAMP SOCKET
w/set screw. Brass finish
Medium (Edison) Base
2-1/8"H overall.
U.L./C.S.A. listed.
Use 250W Max. Bulb

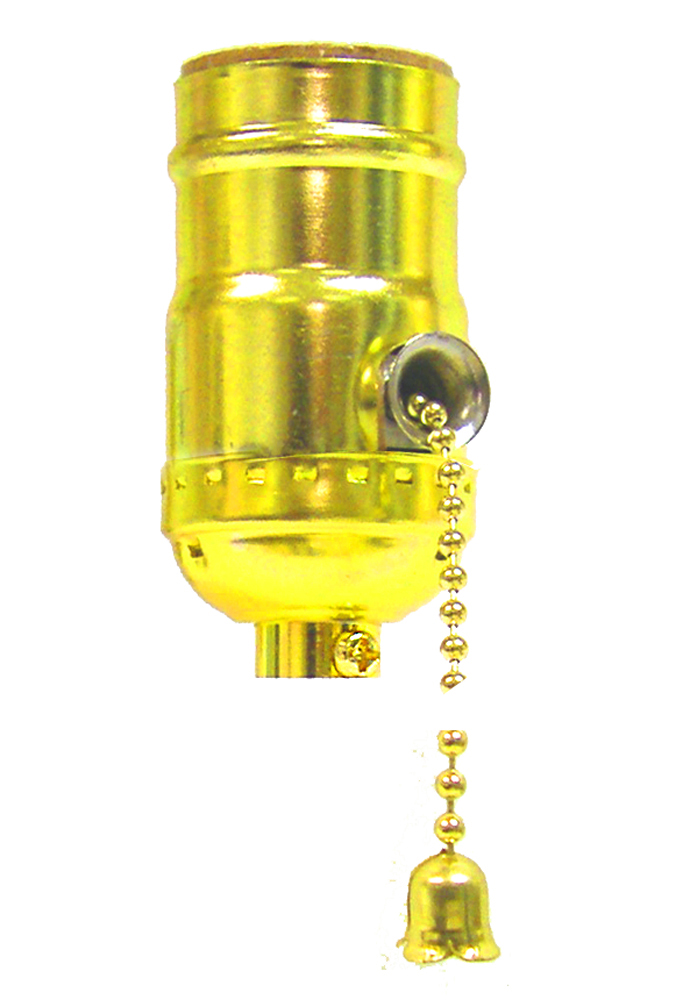

B) PULL CHAIN LAMP SOCKET
w/set screw. Brass finish
Medium (Edison) Base
2-1/2"H overall.
U.L./C.S.A. listed.
Use 250W Max. Bulb

See pricing & ordering information below.

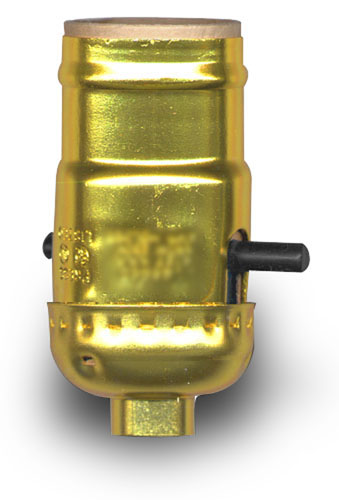

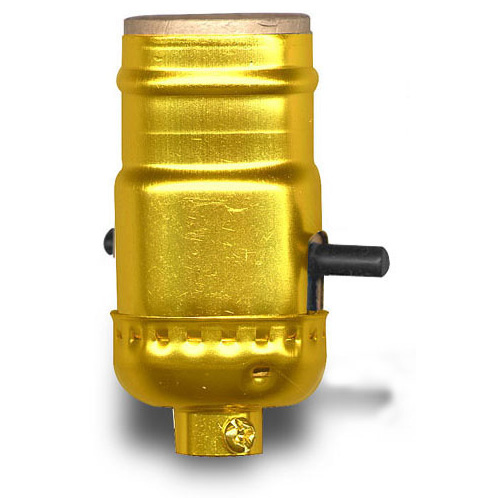

C) PUSH-THRU LAMP SOCKET
with & without set screw.
Brass finish
Medium (Edison) Base
2-1/2"H overall.
U.L./C.S.A. listed.
Use 250W Max. Bulb

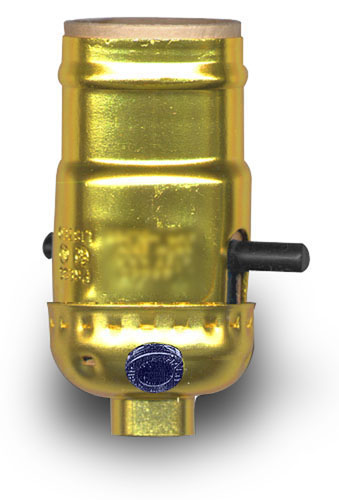

D) SIDE OUTLET Push-Thru
LAMP SOCKET w/Brass Finish
Special hole in cap
lets cord exit from side
Medium (Edison Base
2-1/2"H overall.
U.L./C.S.A. listed.
Use 250W Max. Bulb

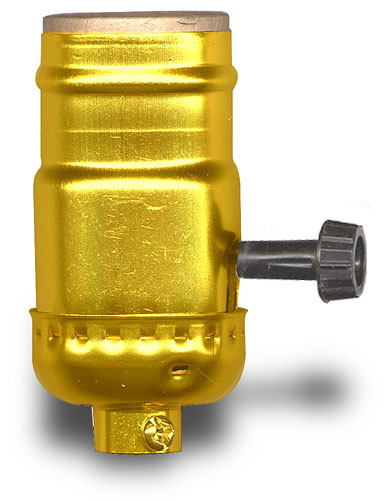

E) TURN KNOB LAMP SOCKET
w/set screw. Brass Finish
Medium (Edison) Base
2-1/2"H overall.
U.L. listed.
Use 250W Max. Bulb

See pricing & ordering information below.

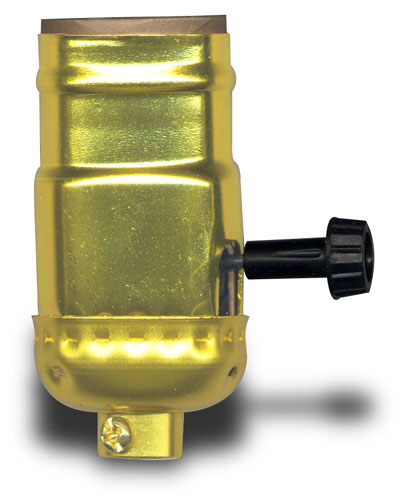

F) 3-WAY Turn Knob
LAMP SOCKET w/Brass finish
For 3-Way Bulbs.
With set screw.
Medium (Edison) Base
2-1/2"H overall.
U.L./C.S.A. listed.
Use 250W Max. Bulb

G) 3-WIRE Turn Knob
LAMP SOCKET. Brass finish
w/set screw. Operates
2 Lamps separately
or together
(see diagram at right).
Medium (Edison) Base
2-1/2"H overall.
U.L./C.S.A. listed.
Use 250W max. Bulb

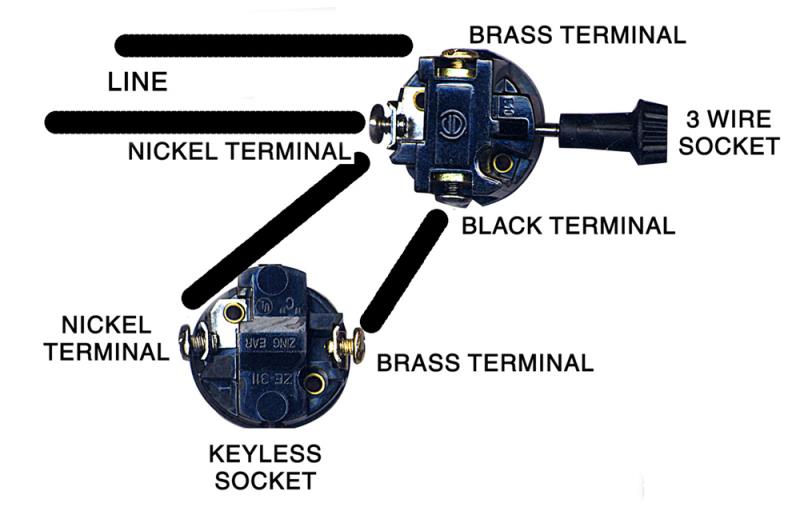

Wiring Diagram for (G):
Connect brass terminal of
Keyless Socket to black
terminal of 3-Way; connect
both nickel terminals
together; connect lamp
cord to brass & nickel
terminal of 3-Way.

Stock Number Color, Size or Description Unit List
Price

Quantity Price Breaks

 Add to Order
5 10 20 50 100 200 Qty.
A 140-700-07 Keyless Lamp Socket, Brass Finish ea. $2.25 $1.90 $1.50 $1.30 $1.13 $0.95 $0.85
B 140-704-03 Pull Chain Lamp Socket, Brass Finish ea. $3.30 $2.80 $2.10 $1.55 $1.40 $1.25 ---
C 140-705-02 Push Thru Lamp Socket - No Set Screw, Brass Finish ea. $2.35 $1.98 $1.60 $1.35 $1.13 $0.99 $0.89
C 140-732-07 Push Thru Lamp Socket - Set Screw, Brass Finish ea. $2.49 $2.10 $1.68 $1.40 $1.18 $1.05 $0.93
D 140-637-02 Push Thru Lamp Socket w/Side Outlet Cap, Brass Finish ea. $3.19 $2.70 $2.05 $1.50 $1.35 $1.20 ---
E 140-706-01 Turn Knob Lamp Socket, Brass Finish ea. $2.90 $2.45 $1.88 $1.35 $1.23 $1.10 ---
F 140-708-09 3-Way Turn Knob Lamp Socket, Brass Finish ea. $3.29 $2.80 $2.25 $1.95 $1.65 $1.50 $1.40
G 140-800-06 Turn Knob Lamp Socket - 3-Wire, Brass Finish ea. $3.50 $2.98 $2.35 $1.90 $1.65 $1.49 ---

All Electrical Sockets may be combined for quantity price but must be ordered in multiples of 5 of a number.

For Large Quantity POWER PRICING Please Contact Us.

Minimum TOTAL Merchandise Order Is $19.

To order an item, add the quantity you wish in the blank space provided. Then click on the Order button to add it to your shopping basket. Remember: You can combine certain items for quantity pricing. You can also create a Bookmark or Favorites entry on your web browser to save links to this or other pages for future ordering.

See also Light Bulbs and Lamp Cords in Index.

Please Note: To avoid risk of fire, burns, electrical shock or other injury, install correctly, do not exceed ratings and do not place where small children can reach them.
