Lighting & Lamp Parts : National Artcraft Lamp Cord Sets :

National Artcraft Lamp Cord Sets with MULTIPLE SOCKETS

LAMP CORD SETS with MULTIPLE SOCKETS have fuse-protected plugs for added safety. (Extra fuse included.)

  • Cord Sets Are Factory Manufactured To Exacting Specifications
  • Molded End Plug Is Polarized with 2 Prongs & FUSED for Extra Safety (Extra Fuse Included)
  • In-Line On/Off Switch Approx. 22" from Last Socket of Each Set
  • Low Profile Candelabra Base Sockets with Metal Spring Clips Fit 1" Openings
  • Sockets Accept 7-1/2 Watt Maximum Bulbs
  • Cord Sets Are SPT-1 Rated and Have #18/105° Stranded Copper Wire
  • For INDOOR Use Only
  • SPT-1 Cord Has 7 Amp Rating
    SPT-2 Cord Has 10 Amp Rating & Thicker Insulation

Click on images to zoom.

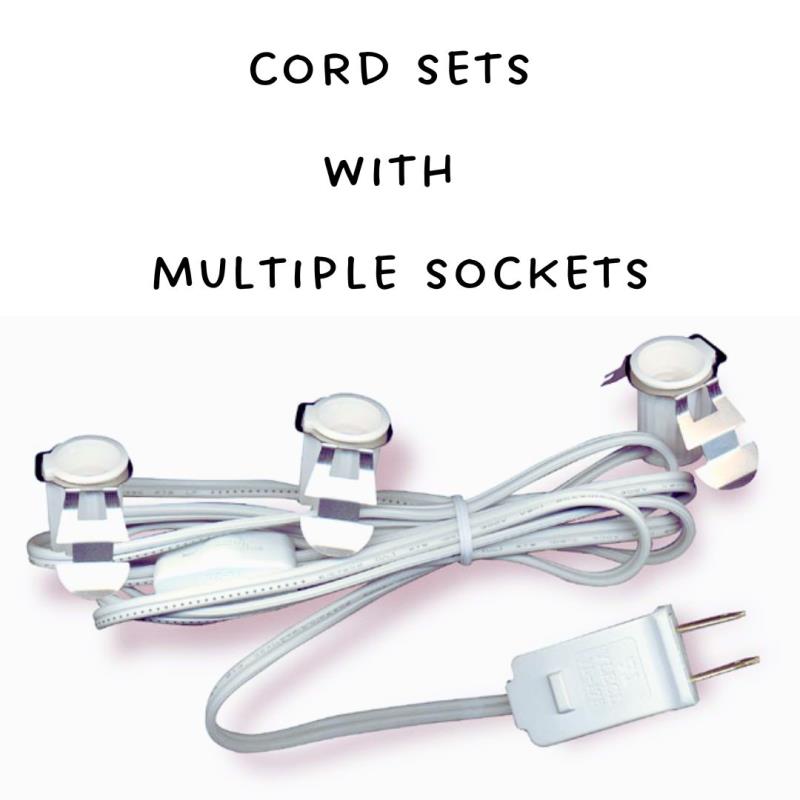

LAMP CORD SETS with
MULTIPLE SOCKETS.
2, 3 and 5
Low-Profile Socket Sets.
Fuse Protected.
WHITE Only in 2 LENGTHS

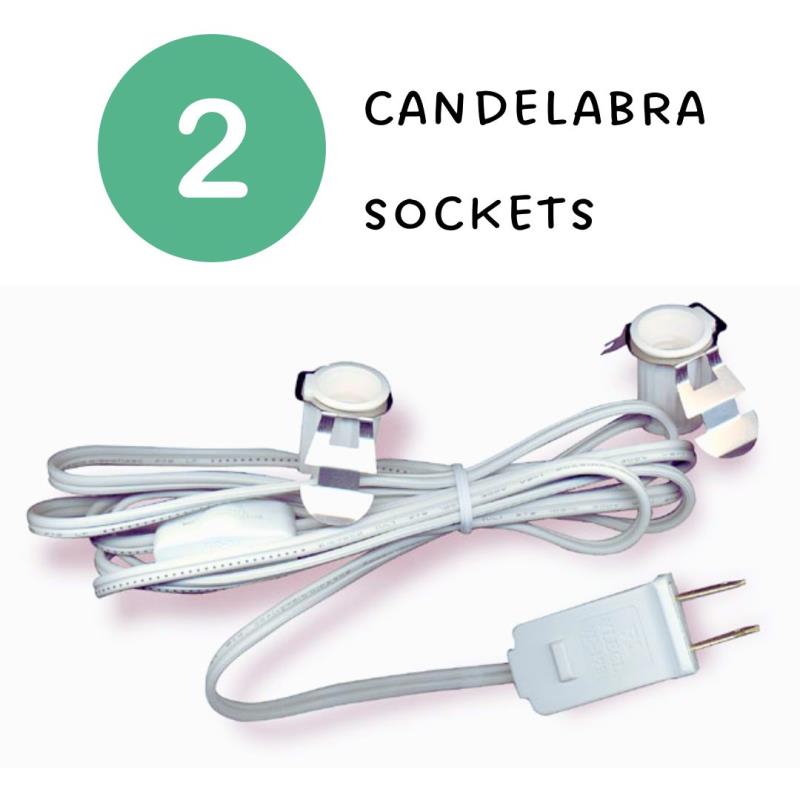

A) Cord Set with
2 Candelabra Sockets.
Fuse Protected.
SPT-1 #18/105° Wire.
7’-2" White Cord
9" between Sockets. USE MAX. 7-1/2W BULBS

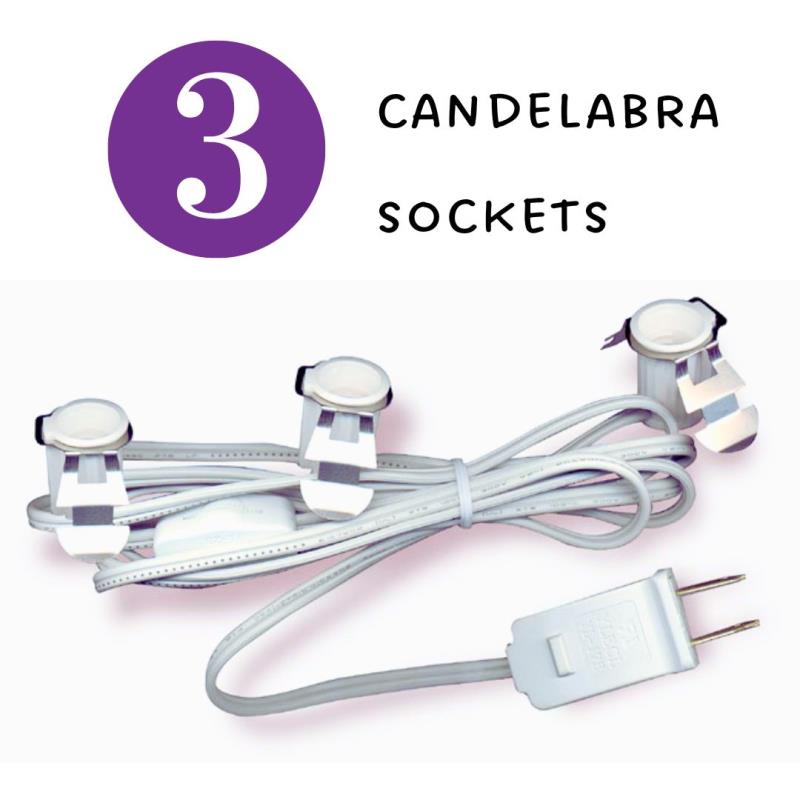

B) Cord Set with
3 Candelabra Sockets.
Fuse Protected.
SPT-1 #18/105 Wire
7’-2" White Cord
End socket is 8" from
middle socket which is
6" from last socket. USE MAX. 7-1/2W BULBS

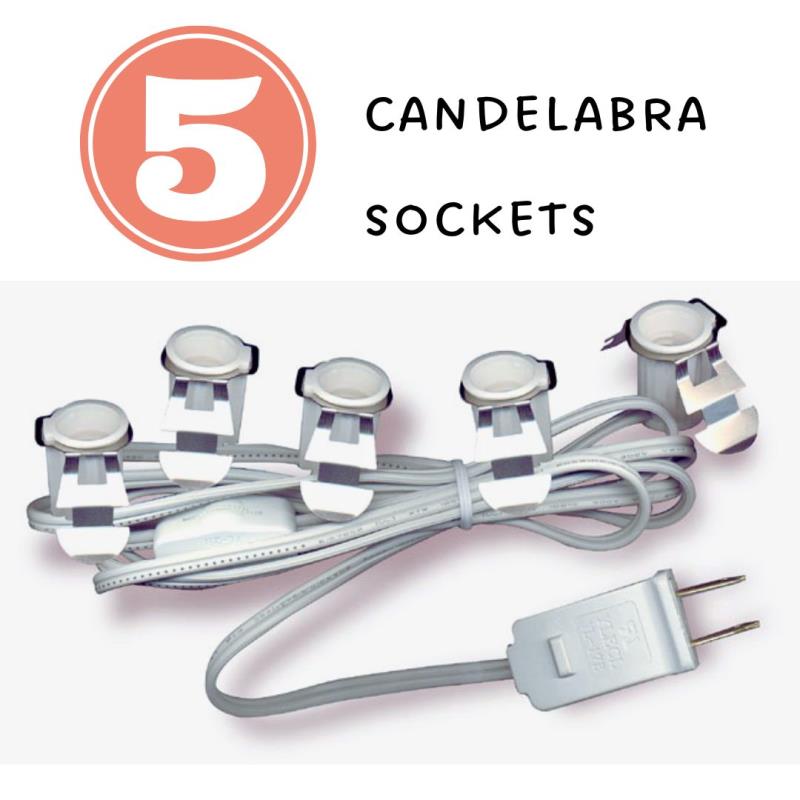

C) Cord Set with
5 Candelabra Sockets
Fuse Protected.
SPT-1 #18/105° Wire.
8’-2" White Cord
Sockets are 6" Apart. USE MAX. 7-1/2W BULBS
Bulb Types
1) Candelabra Base
(Approx. 7/16" Dia.)
2) Intermediate Base
(Approx. 5/8" Dia.)
3) Standard Base
(Approx. 1" Dia.)

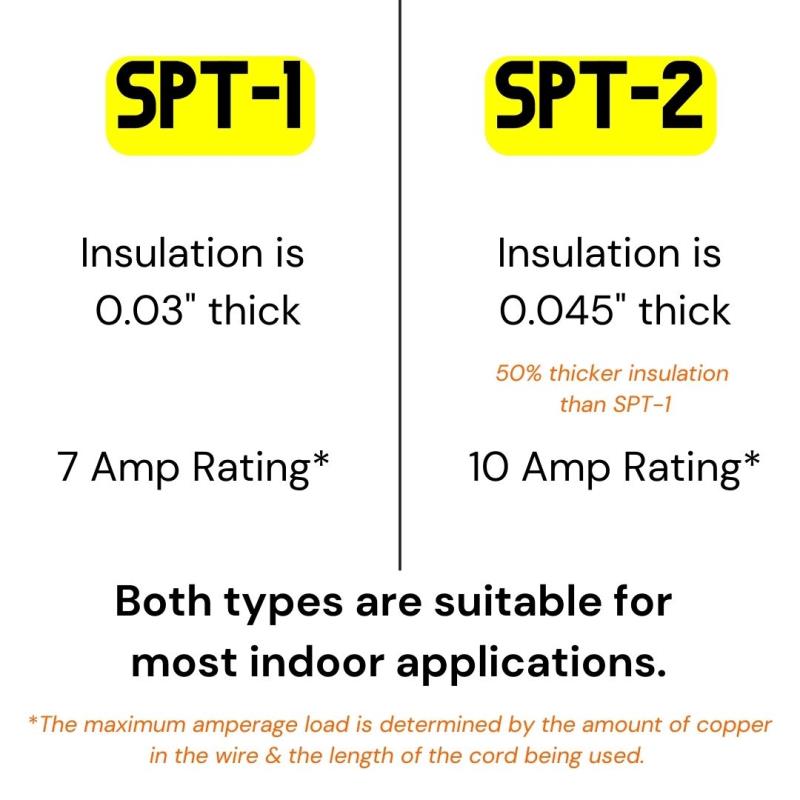

What’s the Difference?
SPT-2 Cord has
thicker insulation
covering the #18/105°
Stranded Copper Wire to
qualify for U.L. Approved
Commercial Applications.
To see Other CORD SETS
enter "Cord Sets" in
Product Search Box at
upper left of this page
& click "GO".

Images
Click to zoom.
Color, Size or Description Unit List
Price

Quantity Price Breaks

Add to Order
1 10 50 Qty.

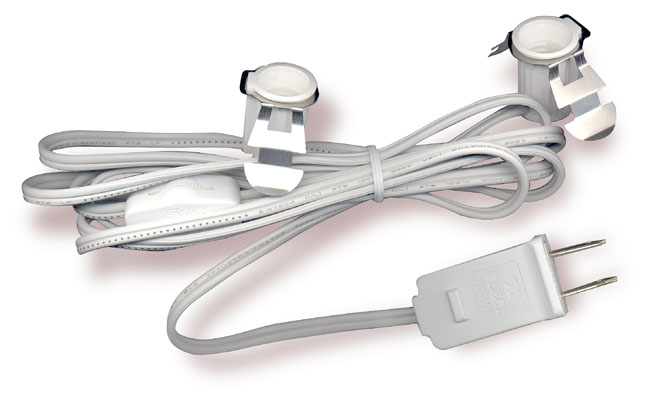

(A) Cord Set with 2 Candelabra Sockets (SPT-1)
Stock Number: 201-217-02
Cord Set with 2 Low-Profile Candelabra Sockets. Clip-In sockets fit 1-1/8" round opening. Sockets extend only about 1/2" into your project. Fuse Protected plug is polarized with 2 prongs. SPT-1 #18/105° Wire. 7’-2" White Cord 9" between Sockets. USE MAX. 7-1/2W BULBS
ea. $10.60 $7.95 $6.95 $5.95

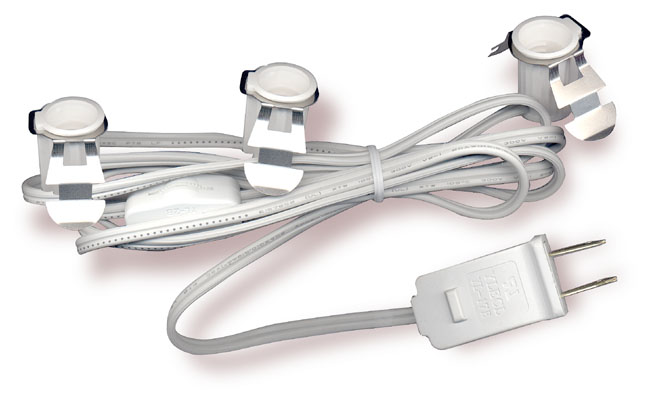

(B) Cord Set with 3 Candelabra Sockets (SPT-1)
Stock Number: 147-004-05
Cord Set with 3 Clip-In Candelabra Sockets. Fit 1-1/8" round openings. Sockets extend only about 1/2" into your project. Fuse Protected polarized plug has 2 prongs. SPT-1 #18/105 Wire. 7’-2" White Cord. End socket is 8" from middle socket which is 6" from first socket. USE MAX. 7-1/2W BULBS
ea. $10.95 $8.20 $7.15 $6.30

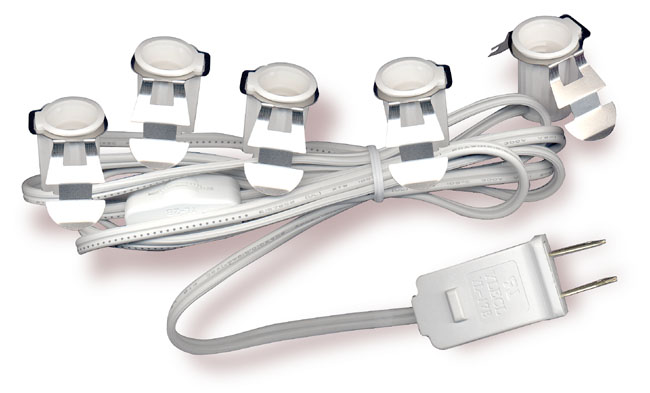

(C) Cord Set with 5 Candelabra Sockets (SPT-1)
Stock Number: 147-002-07
Cord Set with 5 Clip-In Candelabra Sockets. Fit 1-1/8" round openings. Sockets extend to only about 1/2" into your project. Fuse Protected polarized plug has 2 prongs. SPT-1 #18/105° Wire. 8’-2" White Cord. Sockets are 6" Apart. USE MAX. 7-1/2W BULBS
ea. $10.40 $7.75 $6.60 $5.80

Minimum TOTAL Merchandise Order Is $10.

To order an item, add the quantity you wish in the blank space provided. Then click on the Order button to add it to your shopping basket.

  • (A) Cord Set with 2 Candelabra Sockets (SPT-1) $5.95 & up


    Cord Set with 2 Low-Profile Candelabra Sockets. Clip-In sockets fit 1-1/8" round opening. Sockets extend only about 1/2" into your project. Fuse Protected plug is polarized with 2 prongs. SPT-1 #18/105° Wire. 7’-2" White Cord 9" between Sockets. USE MAX. 7-1/2W BULBS

    click image to zoom

    • Stock Number: 201-217-02
    • Unit: ea.
    • List Price: $10.60
    • Quantity Price Breaks:
    • 1 10 50
      $7.95 $6.95 $5.95

      Add to Order

  • (B) Cord Set with 3 Candelabra Sockets (SPT-1) $6.30 & up


    Cord Set with 3 Clip-In Candelabra Sockets. Fit 1-1/8" round openings. Sockets extend only about 1/2" into your project. Fuse Protected polarized plug has 2 prongs. SPT-1 #18/105 Wire. 7’-2" White Cord. End socket is 8" from middle socket which is 6" from first socket. USE MAX. 7-1/2W BULBS

    click image to zoom

    • Stock Number: 147-004-05
    • Unit: ea.
    • List Price: $10.95
    • Quantity Price Breaks:
    • 1 10 50
      $8.20 $7.15 $6.30

      Add to Order

  • (C) Cord Set with 5 Candelabra Sockets (SPT-1) $5.80 & up


    Cord Set with 5 Clip-In Candelabra Sockets. Fit 1-1/8" round openings. Sockets extend to only about 1/2" into your project. Fuse Protected polarized plug has 2 prongs. SPT-1 #18/105° Wire. 8’-2" White Cord. Sockets are 6" Apart. USE MAX. 7-1/2W BULBS

    click image to zoom

    • Stock Number: 147-002-07
    • Unit: ea.
    • List Price: $10.40
    • Quantity Price Breaks:
    • 1 10 50
      $7.75 $6.60 $5.80

      Add to Order

Some other items which may be used with these cords include
Light Bulbs. Click selections below to view.
>

Please Note: To avoid risk of fire, burns, electrical shock or other injury, install correctly, do not exceed ratings and do not place where small children can reach them.
