Clock & Thermometer Movements : Quartz Clock Movements Without Hands :

Quartz Clock Movements and Hands For Large Dials

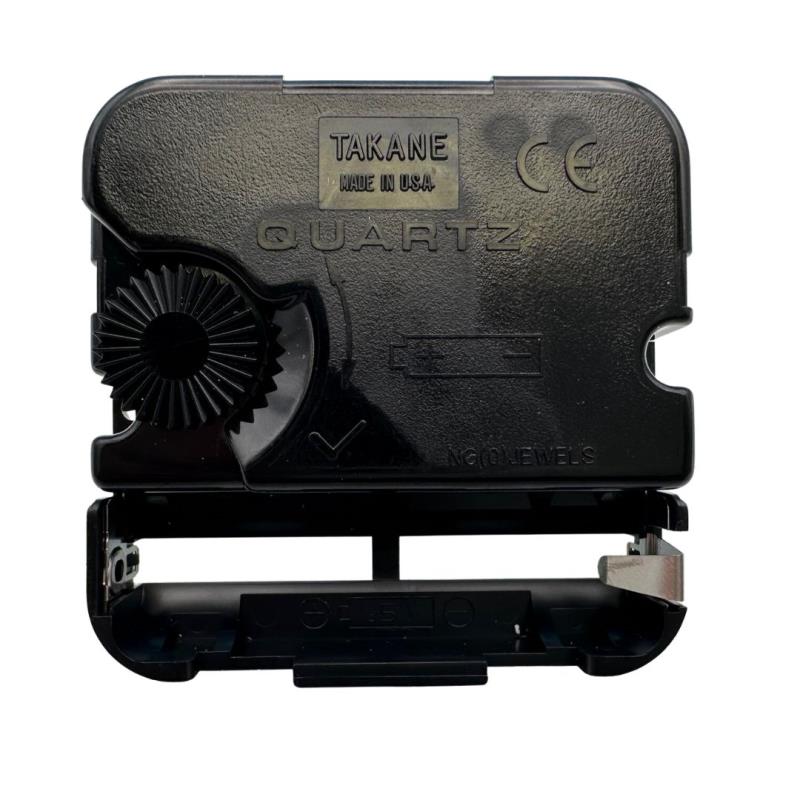

HIGH TORQUE CLOCK MOVEMENT is Compact Yet VERY Powerful. Drives EXTRA LONG HANDS for LARGE CLOCK DIALS Up To 24" In Diameter.

Movement Is Center-Shaft Mounted (Hardware Included).

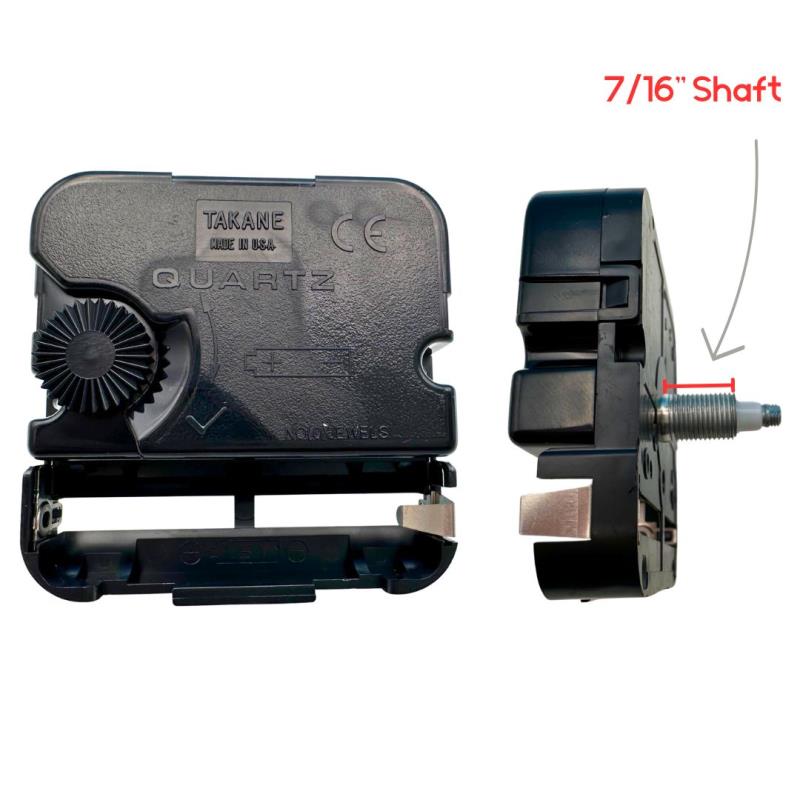

7/16" Long SHAFT Requires 5/16" Dia. Hole. Fits Dials Up To 5/16" Thick.

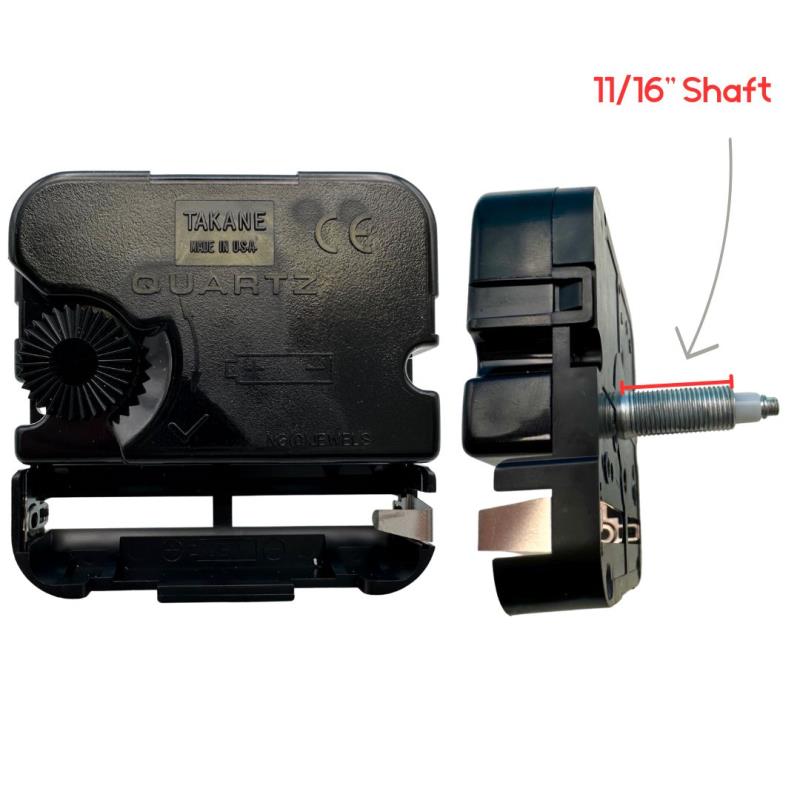

11/16" Long SHAFT Requires 11/32" Dia. Hole. Fits Dials Up To 9/16" Thick.
Quartz Clock Mechanism Is Accurate To +/- 3 Min. A Year. Uses 1 AA-Size Alkaline Battery (NOT Included).
HAND SIZES: Sizes given are measured from CENTER of Shaft Hole to TIP of Hand. Hands are Lightweight yet Sturdy Aluminum. Available in BLACK Only.

Warranted 12 Months from Date of Purchase.
Compact Case Measures Only 2-1/8" x 2-1/8" x 5/8"D.
Order Clock Hands SEPARATELY.
IMPORTANT: Be sure that installed hands are parallel to each other so that the minute hand does not get stuck on the hour hand.
IMPORTANT: HANDS SHOWN BELOW WILL ONLY FIT HIGH TORQUE CLOCK MOVEMENTS

Click on images to zoom.

HIGH TORQUE
Clock Movements
For LARGE CLOCKS with Dials Up To 24" In Diameter.
2 SHAFT LENGTHS

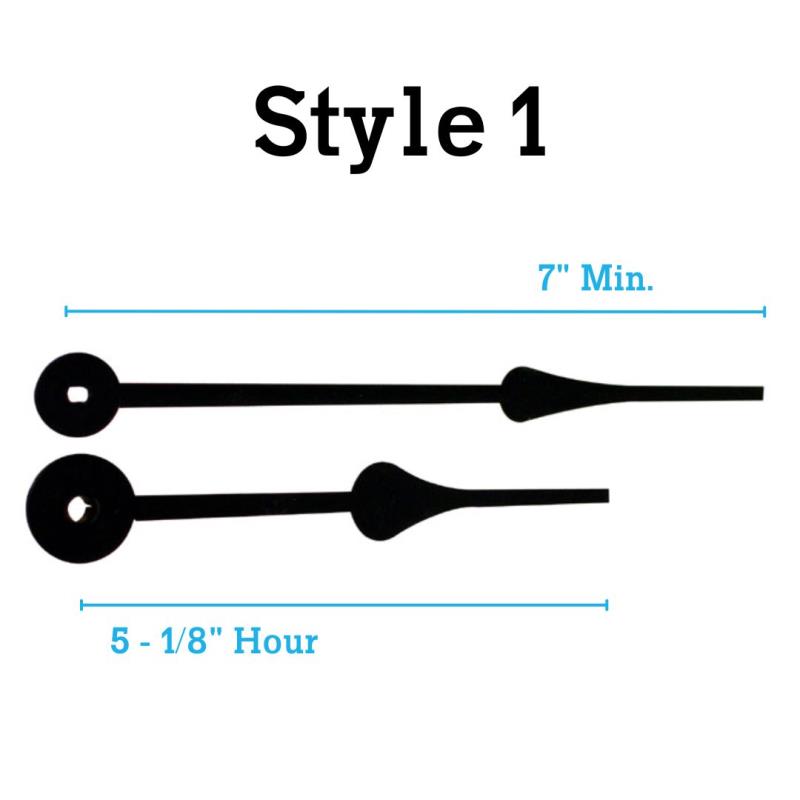

Style 1 Classic Shape
Clock Hands for
HIGH TORQUE Clock Movement
Hour Hand: 5-1/8"L
Minute Hand: 7"L

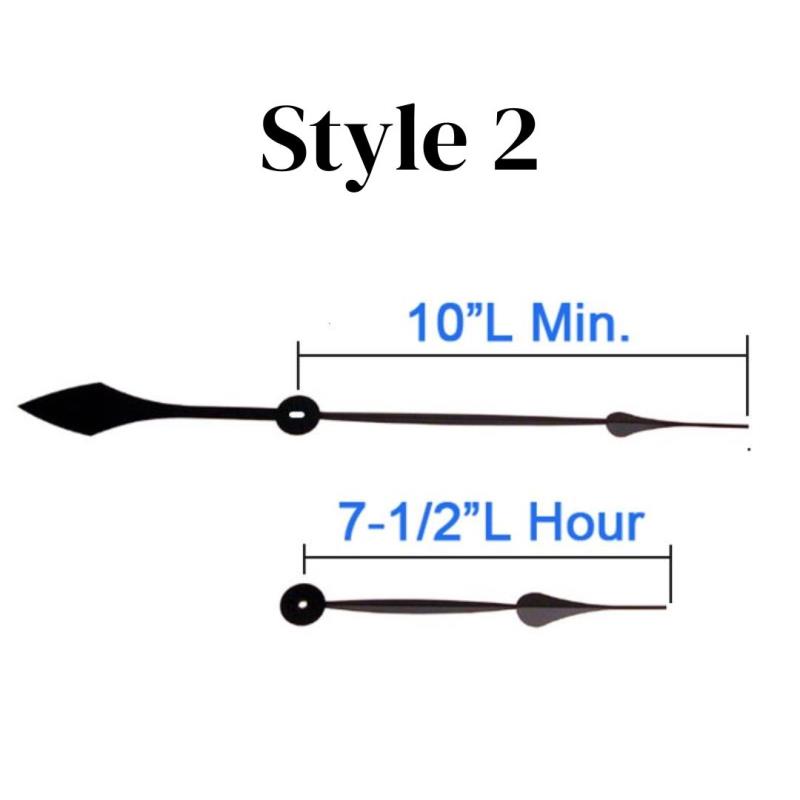

Style 2 Classic Shape
Clock Hands for
HIGH TORQUE Clock Movement
10"L Minute Hand with 7-1/2"L Hour Hand

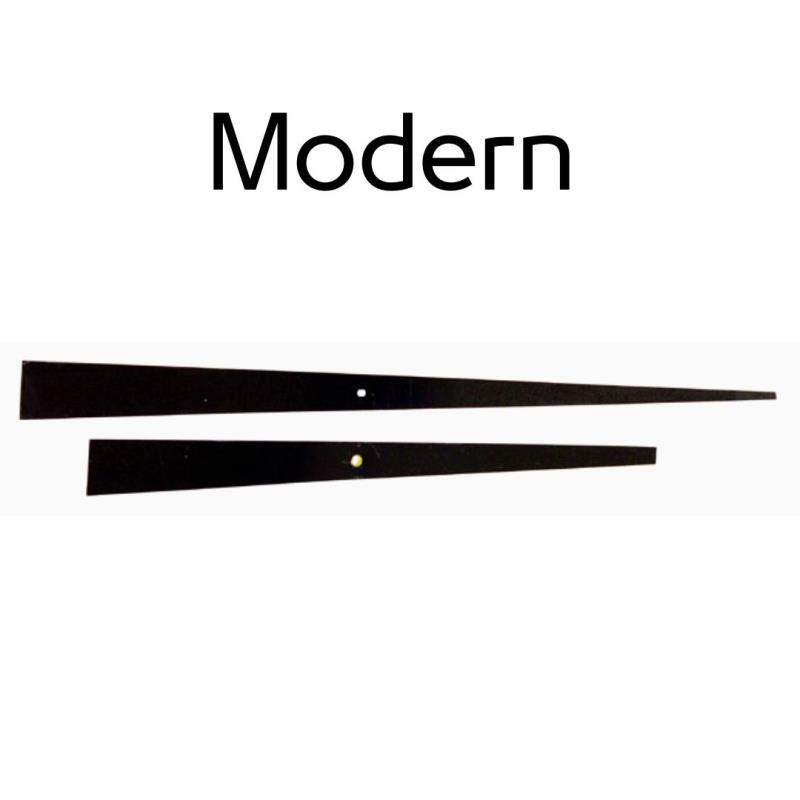

Modern Shape
Clock Hands for
HIGH TORQUE
Clock Movement
Hour Hand: 7"L
Minute Hand: 10"L

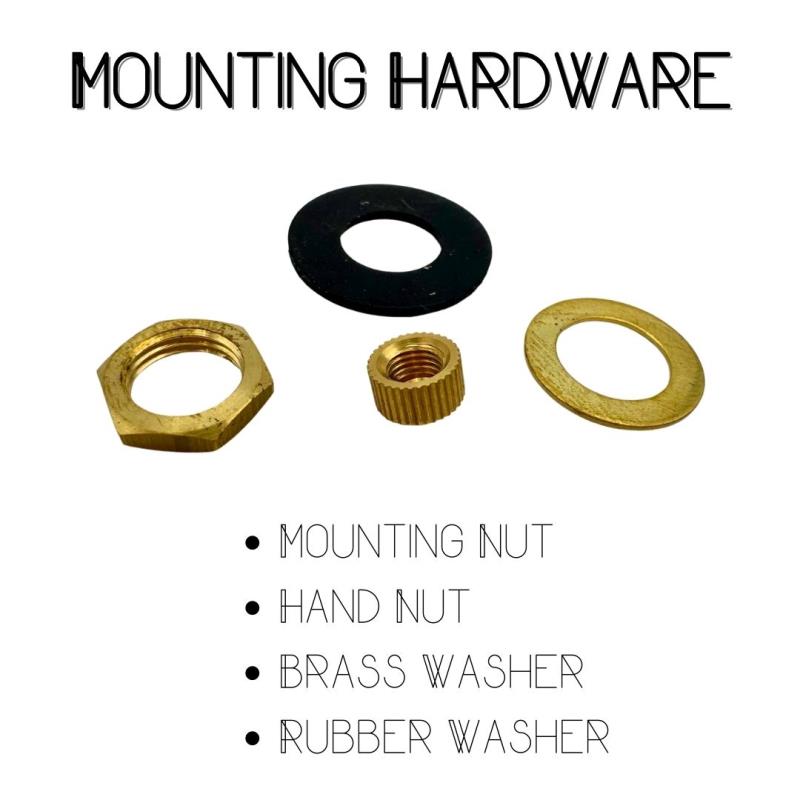

Mounting Hardware:
Mounting Nut, Hand Nut,
Brass Washer and Rubber Washer.
FREE with each movement.

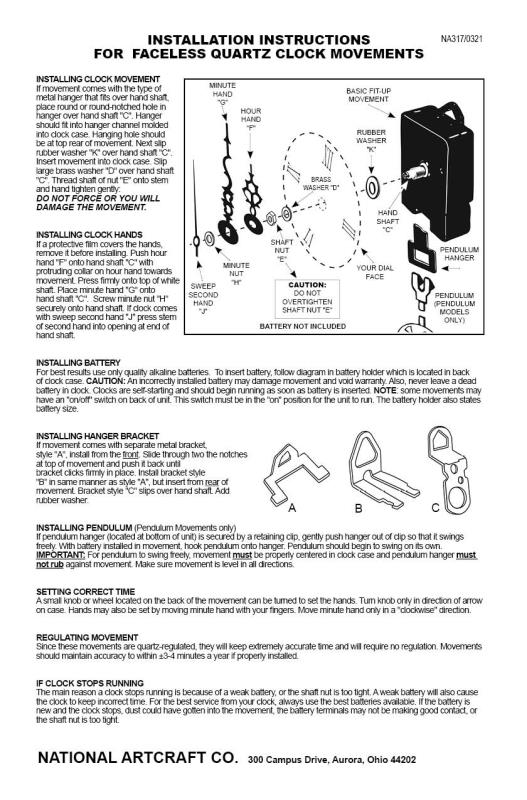

HOW TO INSTALL:
Click On "HOW TO INSTALL" Icon Above To View. No Tools Required.

Make your own original large
size wall clock with our
movement & extra-large hands.

High Torque Quartz Clock Movements WITH HANDS are also available.
Click Link on bottom of page to view and buy.

WALL MOUNTING CUP
2-Piece snap-together clock movement holder for wall mounting includes 2 plaster screws and plastic wall anchors. Cup measures 3-1/2" diameter x 15/16" deep.
Click Link below to buy:

Images Click to zoom.	Color, Size or Description	Unit	List Price	Quantity Price Breaks			Add to Order
Images Click to zoom.	Color, Size or Description	Unit	List Price	1	5	10	Qty.
	High Torque Clock Movement for Large Dials 7/16"L Shaft Stock Number: 177-812-07	ea.	$7.66	$5.75	$4.70	$4.10
	High Torque Clock Movement for Large Dials 11/16"L Shaft Stock Number: 190-200-09	ea.	$7.73	$5.80	$4.75	$4.10
	Style 1 Classic Clock Hands for Large Dials - 5-1/8"L Hr. & 7"L Min. Stock Number: 174-047-02	pr.	$5.95	$4.80	$4.55	$4.30
	Style 2 Classic Clock Hands for Large Dials - 7-1/2"L Hr. & 10"L Min. Stock Number: 179-090-09	pr..	$10.50	$8.85	$8.35	$7.95
	Modern Clock Hands for Large Dials - 7"L Hr. / 10"L Min. Stock Number: 174-048-01	pr.	$11.00	$9.90	$9.40	$8.95
	Minimum TOTAL Merchandise Order Is $10.

To order an item, add the quantity you wish in the blank space provided. Then click on the Order button to add it to your shopping basket.

High Torque Clock Movement for Large Dials 7/16"L Shaft $4.10 & up

Stock Number: 177-812-07
Unit: ea.
List Price: $7.66
Quantity Price Breaks:

1	5	10
$5.75	$4.70	$4.10

High Torque Clock Movement for Large Dials 11/16"L Shaft $4.10 & up

Stock Number: 190-200-09
Unit: ea.
List Price: $7.73
Quantity Price Breaks:

1	5	10
$5.80	$4.75	$4.10

Style 1 Classic Clock Hands for Large Dials - 5-1/8"L Hr. & 7"L Min. $4.30 & up

Stock Number: 174-047-02
Unit: pr.
List Price: $5.95
Quantity Price Breaks:

1	5	10
$4.80	$4.55	$4.30

Style 2 Classic Clock Hands for Large Dials - 7-1/2"L Hr. & 10"L Min. $7.95 & up

Stock Number: 179-090-09
Unit: pr..
List Price: $10.50
Quantity Price Breaks:

1	5	10
$8.85	$8.35	$7.95

Modern Clock Hands for Large Dials - 7"L Hr. / 10"L Min. $8.95 & up

Stock Number: 174-048-01
Unit: pr.
List Price: $11.00
Quantity Price Breaks:

1	5	10
$9.90	$9.40	$8.95

High Torque Quartz Clock Movements WITH HANDS are also available.
Click on Selections below to view.
