Home : Clock Parts : Quartz Clock Movements WITHOUT Hands :

Quartz Clock Movements by Seiko & TimeZone WITHOUT Hands

Imported Quartz Clock Movements by Seiko & by TimeZone. Clock hands sold separately.

  • Center shaft mounted. Requires 11/32" shaft hole.

  • Easy to install. See installation instructions (linked below).

  • Cases Measure 2-1/8"W x 2-3/16"H x 9/16" Deep. Minimum mounting hole recommended is 3" in diameter.

  • Takes one AA battery. (Battery not included)

  • 12 month warranty from date of purchase.

  • IMPORTANT: Be sure that installed hands are parallel to each other so that the minute hand does not get stuck on the hour hand.

  • Mounting hardware & instructions included with purchase.

  • Wall Mounting Cup sold separately (linked below).

Click on images to zoom.

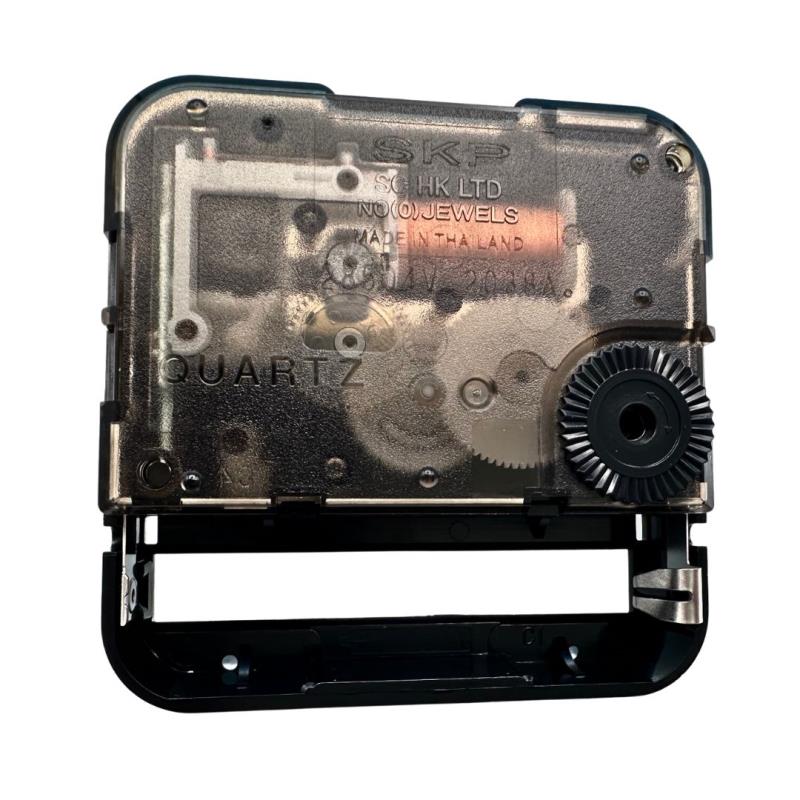

Quartz Clock Movements by Seiko & TimeZone

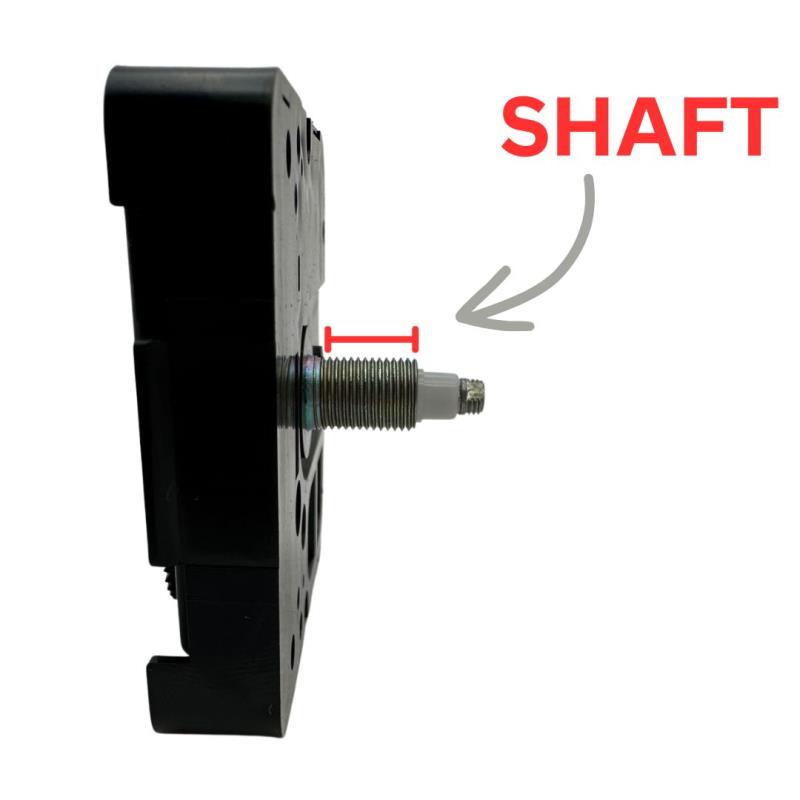

2 Shaft Lengths:
B) 9/16"L for dials up to 7/16" thick
C) 3/4"L for dials up to 5/8" thick

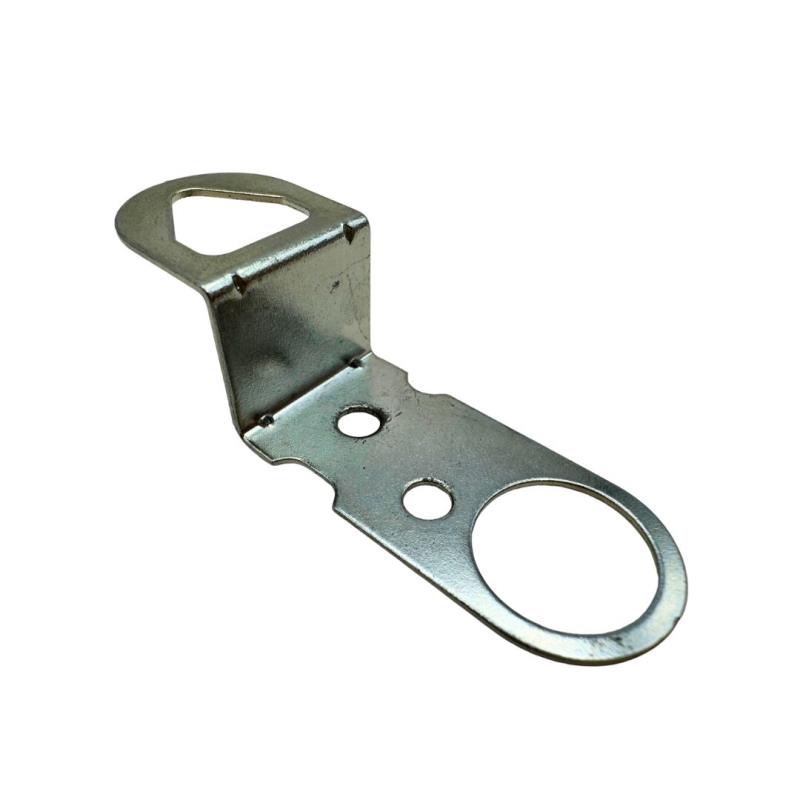

D) Metal Hanger

Not included with mounting hardware

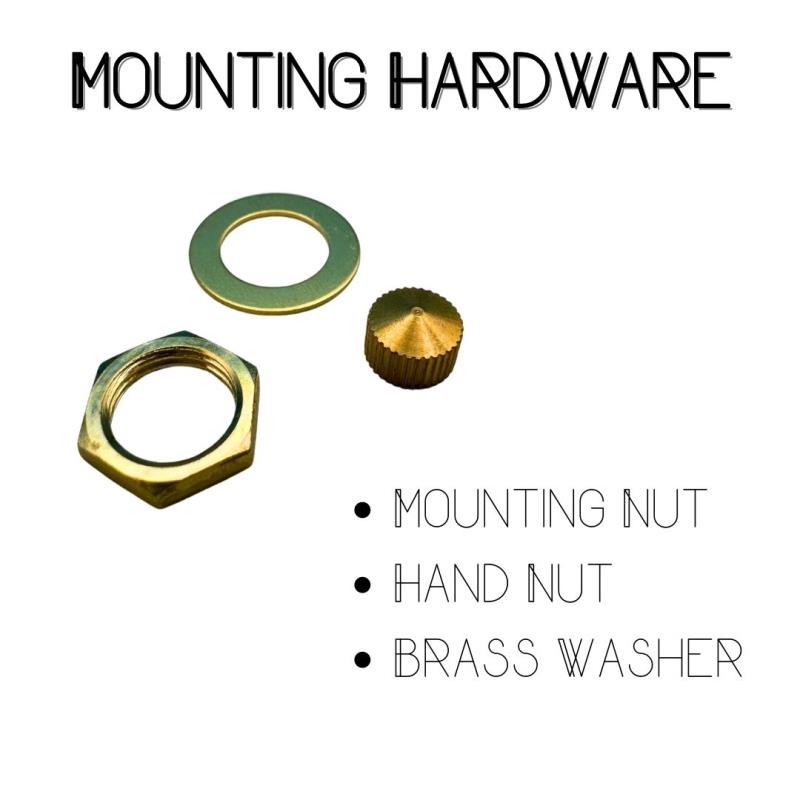

Mounting Hardware included with Seiko clock movements

Contains: Mounting Nut, Hand Nut & Brass Washer. Fits SEIKO clocks only.

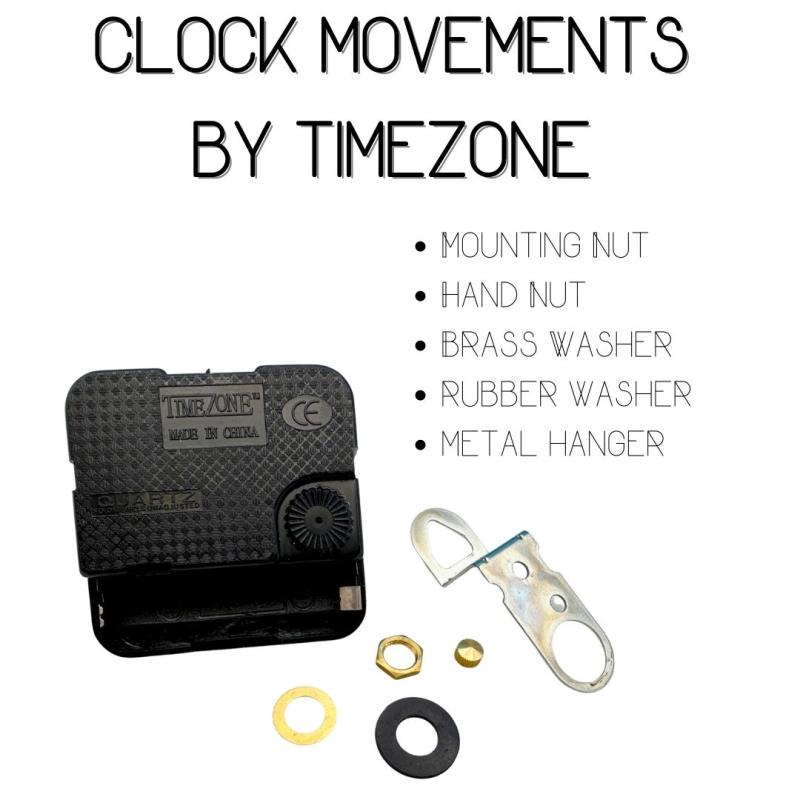

Clock Movements by TimeZone include all mounting hardware & metal hanger

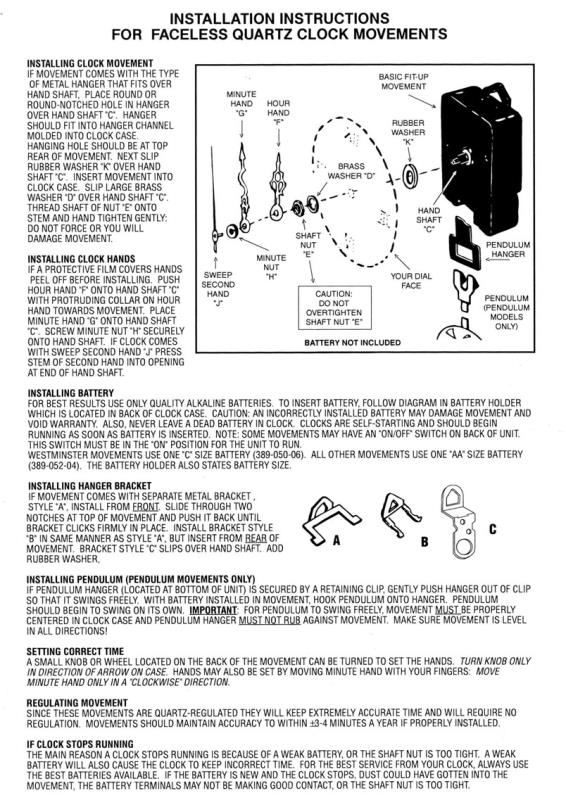

INSTALLATION INSTRUCTIONS FOR FACELESS QUARTZ CLOCK MOVEMENTS

Images
Click to zoom.
Color, Size or Description Unit List
Price

Quantity Price Breaks

Add to Order
1 10 25 Qty.
(B) Seiko Clock Movt. 9/16" Shaft -NO Second Hand
Stock Number: 179-029-00
ea. $13.45 $10.45 $9.50 $8.95
(B) Seiko Clock Movt. 9/16" Shaft - with Second Hand
Stock Number: 179-030-09
ea. $13.85 $10.75 $9.80 $9.40
(C) Seiko Clock Movt. 3/4" Shaft -NO Second Hand
Stock Number: 179-031-08
ea. $14.65 $11.60 $10.50 $10.10
(C) Seiko Clock Movt. 3/4" Shaft - with Second Hand
Stock Number: 179-032-07
ea. $13.85 $10.75 $9.80 $9.40
(D) Metal Hanger for Seiko Clock Movements
Stock Number: 179-033-06
ea. $0.50 $0.39 $0.29 $0.23
(E) TimeZone Clock Movement, NO Second Hand - 7/16"L Shaft
Stock Number: 101-133-06
ea. $4.05 $3.25 $2.45 $1.85
(F) TimeZone Clock Movement, With Second Hand - 7/16"L Shaft
Stock Number: 101-134-05
ea. $4.53 $3.40 $2.60 $2.00
(G) TimeZone Clock Movement, NO Second Hand - 7/8"L Shaft
Stock Number: 101-138-01
ea. $4.05 $3.25 $2.45 $1.85
(H) TimeZone Clock Movement, With Second Hand - 7/8"L Shaft
Stock Number: 101-139-00
ea. $4.25 $3.40 $2.60 $2.00

For Large Quantity POWER PRICING Please Contact Us.

Minimum TOTAL Merchandise Order Is $10.

To order an item, add the quantity you wish in the blank space provided. Then click on the Order button to add it to your shopping basket.
