Home : Music Box Mechanisms : On/Off Attachments for Windup Musical Movements :

On/Off Switches & Levers for Windup Musical Movements

On-Off Switches and Levers for Windup Music Box Movements are easily attached. On-Off Assemblies fit Sankyo and Yun Sheng Movements.

  • When Properly Installed On/Off Mechanisms Stop "Governor" from Spinning Which In Turn Stops Music Movement from Playing

Click on images to zoom.

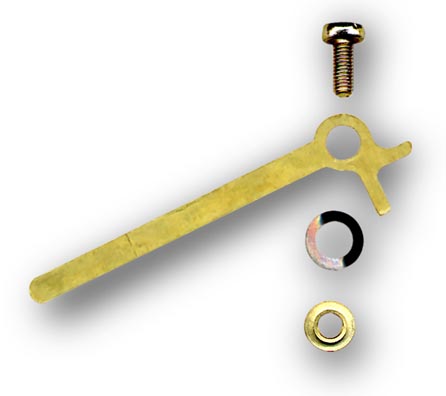

A) SIDE LEVER
On/Off Assembly
for 18-Note Music Movements.
Use in boxes, bases etc.

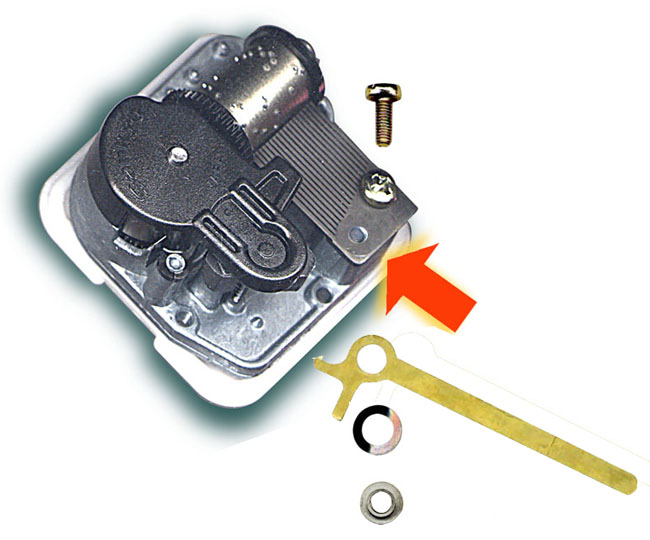

TO INSTALL (A): 1st REMOVE
one Screw ONLY
as indicated by arrow above.

Place NEW Screw provided
thru hole in On/Off Lever
as shown above. Next
place bent Spring Washer
onto Screw followed by
Flat Washer. Place Screw
into Screw hole
& tighten securely.

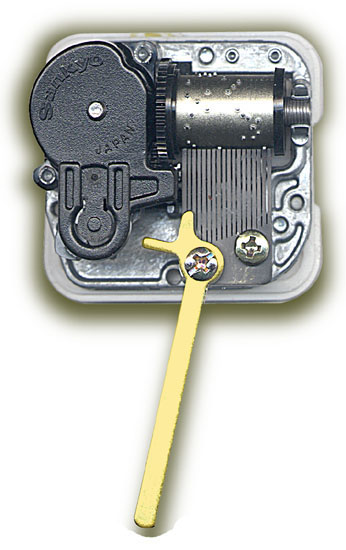

Top view of
properly installed On/Off
Lever. Lever should fit
snuggly to mechanism
but still move freely.
When LEVER is swung to
LEFT movement will stop playing.

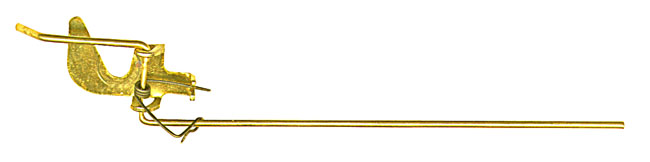

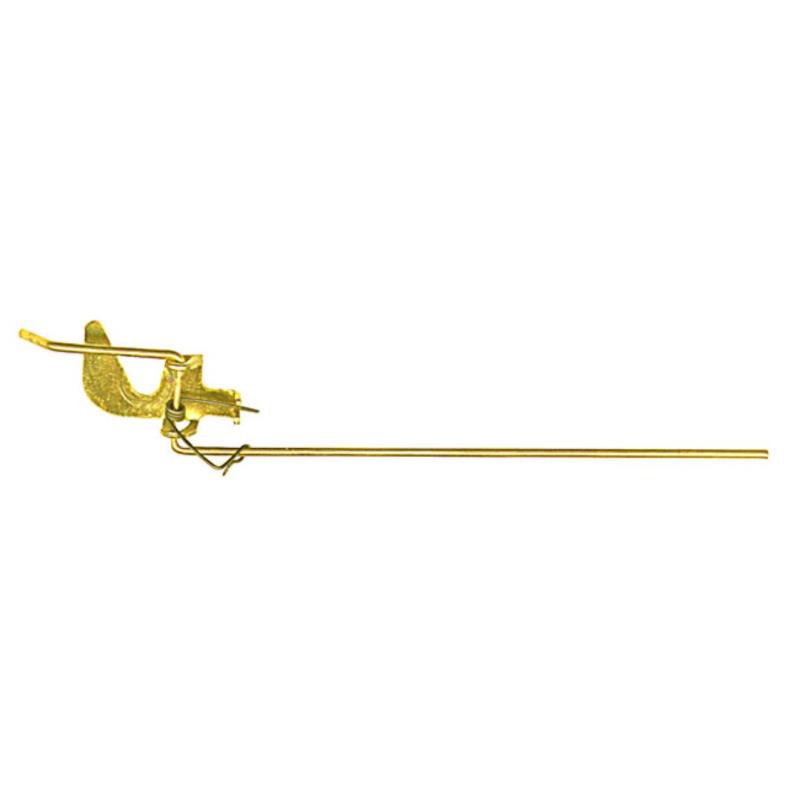

B) WIRE STYLE On/Off Assembly
for 18-Note Music Movements.
Spring loaded up & down
motion. Use in boxes,
drawers, etc.

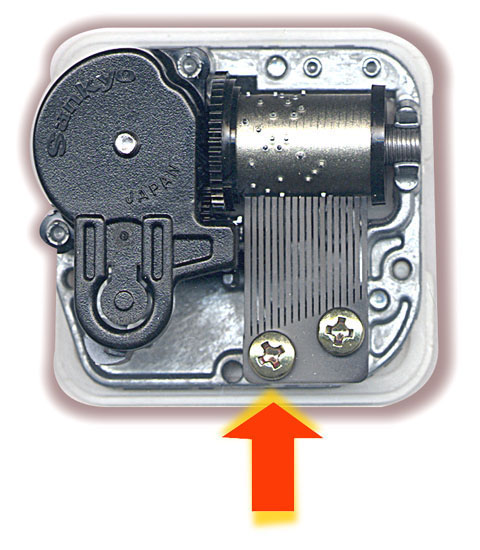

TO INSTALL (B): 1st LOOSEN
one Screw ONLY
as indicated by arrow above.

Push On/Off Arm DOWN while
sliding Assembly under
loosened Screw as shown
above. Push
Assembly tightly against
both Screws &
tighten loose Screw securely.

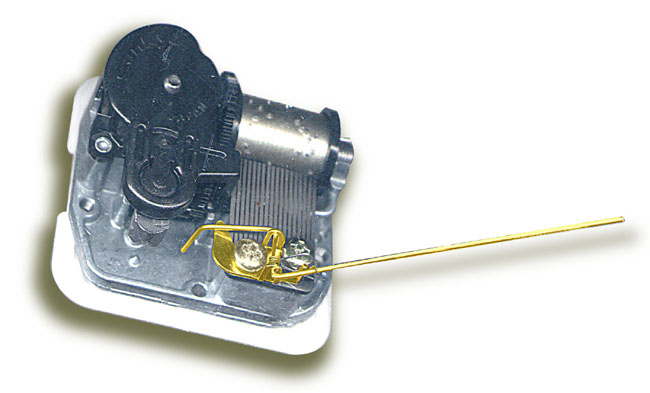

Top view of properly in-
stalled Wire Style On/Off
Mechanism. When Wire is
pushed DOWN Musical
Mechanism stops playing.

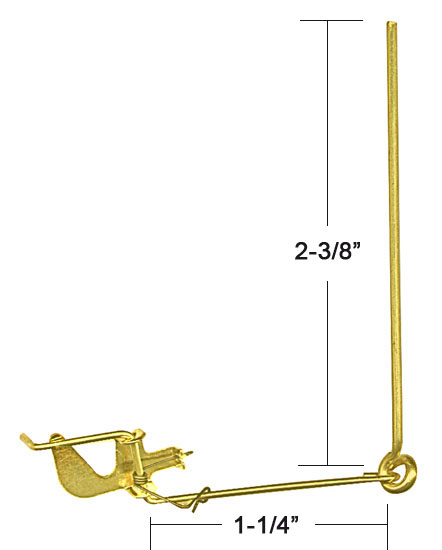

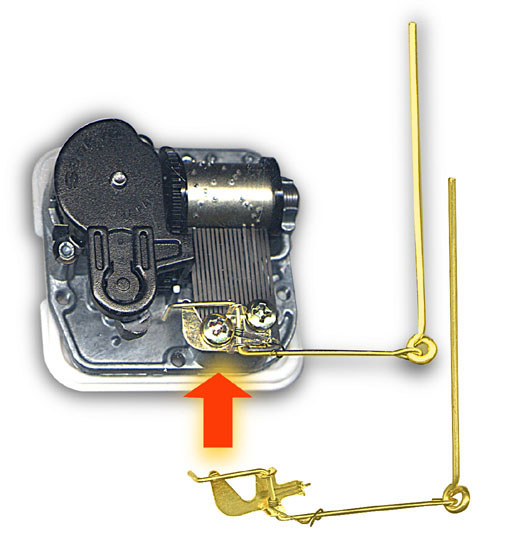

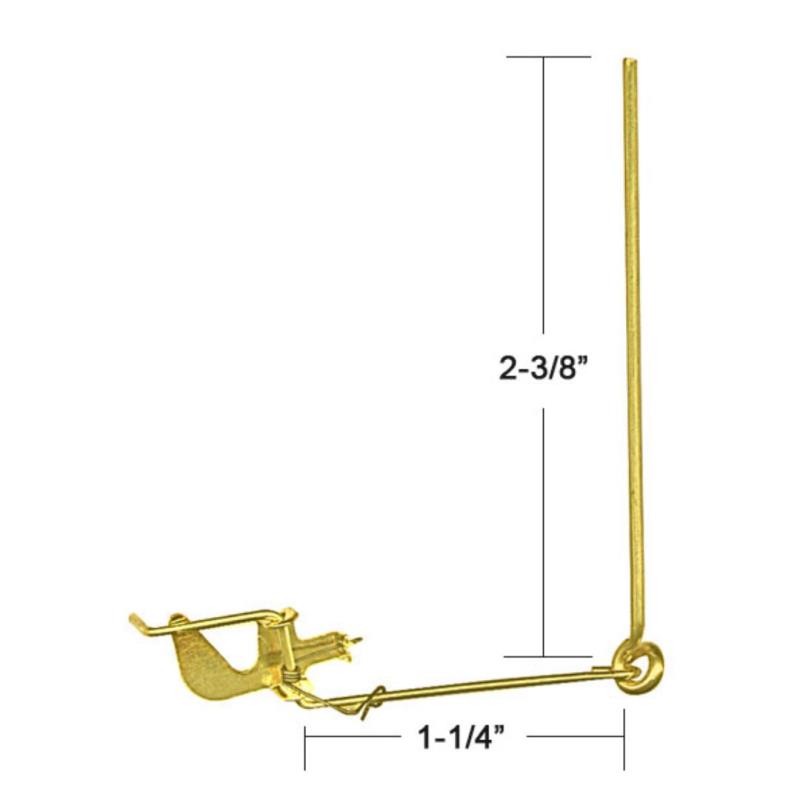

C) PLUNGER STYLE On/Off
Assembly for 18-Note
Musical Movements. Spring loaded up & down motion. Plunger Rod is 2-3/8"L & can be cut to desired length. Horizontal connecting rod is 1-1/4"L.

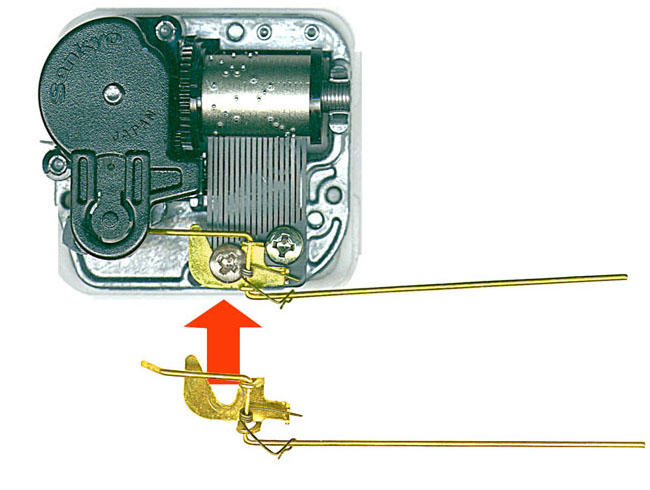

TO INSTALL (C): 1st LOOSEN
one Screw ONLY
as indicated by arrow above.

Push On/Off Arm DOWN while
sliding Assembly under
loosened Screw as shown
above. Push
Assembly tightly against
both Screws &
tighten loose Screw securely.

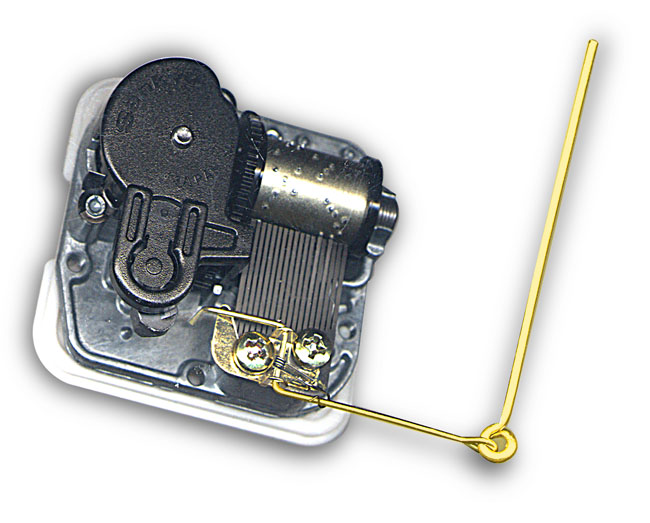

Top view of properly in-
stalled Plunger Style On/Off
Mechanism. When Plunger is
pushed DOWN Musical
Mechanism stops playing.

Images
Click to zoom.
Color, Size or Description Unit List
Price

Quantity Price Breaks

Add to Order
1 5 10 25 Qty.
(A) Side Lever On/Off Assembly for Musical Movements
Stock Number: 221-167-02
ea. $3.00 $2.45 $2.20 $1.90 $1.55
(B) Wire Style On/Off Assembly for Musical Movements
Stock Number: 221-157-02
ea. $2.54 $1.90 $1.70 $1.55 $1.30
(C) Plunger Style On/Off Assembly for Musical Movements
Stock Number: 221-158-01
ea. $2.25 $1.69 $1.44 $1.25 $1.00

Minimum TOTAL Merchandise Order Is $10.

To order an item, add the quantity you wish in the blank space provided. Then click on the Order button to add it to your shopping basket.

  • (A) Side Lever On/Off Assembly for Musical Movements $1.55 & up

    click image to zoom

    • Stock Number: 221-167-02
    • Unit: ea.
    • List Price: $3.00
    • Quantity Price Breaks:
    • 1 5 10 25
      $2.45 $2.20 $1.90 $1.55

      Add to Order

  • (B) Wire Style On/Off Assembly for Musical Movements $1.30 & up

    click image to zoom

    • Stock Number: 221-157-02
    • Unit: ea.
    • List Price: $2.54
    • Quantity Price Breaks:
    • 1 5 10 25
      $1.90 $1.70 $1.55 $1.30

      Add to Order

  • (C) Plunger Style On/Off Assembly for Musical Movements $1.00 & up

    click image to zoom

    • Stock Number: 221-158-01
    • Unit: ea.
    • List Price: $2.25
    • Quantity Price Breaks:
    • 1 5 10 25
      $1.69 $1.44 $1.25 $1.00

      Add to Order
